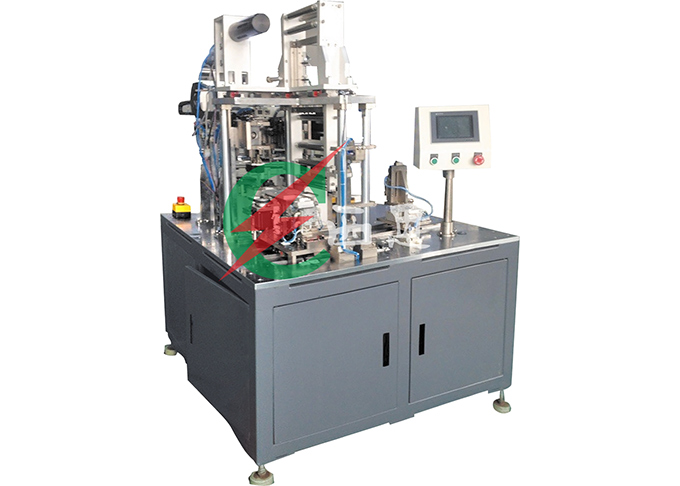

This device is suitable for laminated lithium battery batteries Z row of positive and negative pole piece work
Equipment operation flow£ºArtificial positive and negative pole to the positive and negative on the material tray, install the diaphragm to the stack stage, press the touch screen to start automatic operation. The diaphragm is pressed against the stacking table, and the stack is stacked on the stack of laminations. The stack is moved by a station (the diaphragm is in the middle of the two stations) and then stacked to the stack of laminations. To the need for the number of pole pieces, laminated after the completion of the robot by hand, manually remove the core package diaphragm.
|
Name |
CNGDP--100 |
CNGDP--200 |
(Automatic laminator / semi-automatic laminating machine) main electrical configuration |
|
Pole piece size length |
£¨40¡«180£©mm |
(100¡« 250) mm |
touch screen |
Japan's Mitsubishi |
|
Pole piece size width |
( 30¡«100 )mm |
( 100¡«200 )mm |
servo motor |
Japan's Mitsubishi |
|
Thickness of batteries |
( 5 ¡« 60 )mm |
( 5 ¡« 60 ) mm |
PLC |
Japan Matsushita |
|
Lamination speed |
£¨1.2¡«1.5second£©/sheet |
£¨1.3¡«1.8second£©/sheet |
Fiber Optic Sensor |
Japan Keith |
|
Diaphragm alignment accuracy end face |
¡À 0.3mm |
¡À0.3mm |
Negative pressure gauge |
Japanese god as |
|
Positive alignment accuracy |
¡À0.3mm |
¡À 0.3mm |
Vacuum solenoid valve |
Japan CKD |
|
Key plate alignment accuracy |
¡À0.3mm |
¡À 0.3mm |
cylinder |
JapanSMC/CKD |
|
Pole piece diaphragm alignment accuracy |
¡À 0.3mm |
¡À0.3mm |
Rotary joint |
Japan SMC |
|
equipment power |
3 KW |
3 KW |
Screw |
Taiwan TBI |
|
Pass rate
(Only caused by the machine) |
¡Ý98.0% |
¡Ý98.0% |
guide |
Taiwan on the silver |
|
